Features
NH works particularly well for:
- Injection molding hot runner cleaning
- Preferred injection blow molding - OEM endorsed
- Clear resins
Benefits
- Ideal for injection blow molding
- Injection molding hot runner cleaning
- Non0abrasive, non-agglomerating polishing filler
- Glass-filled grade
- Suitable for difficult color & material changes
- No chemical reaction
- No soak time required
Applications
- Color Changeovers
- Material Changeovers
- Color/Carbon Contamination
- Clear/ Low Reside Applications
- Hot Runner Cleaning
- Shutdown and Sealing
- High Temperature Applications
- Low Temperature Applications
- Screw Pulls
- Preventative Purging
Usage Information
| Temperature Range | 180°C-330°C (335°F-625°F) |
| Minimum Clearance | Requires a 0.75mm (0.030') clearance for hot runner gates and extrusion dies. |
| Amount of Purge | Typically 1-2 system capacities (actual amount depends on degree of contamination |
| Applications |
Injection Molding - including hot runners Extrusion - profile, sheet. blow molding, cast film & compounding |
| Types of Resin | Most commodity and engineering grade resins within the processing temperature range |
Tips
-
For maximum performance, Asaclean® NH Grade should not be diluted with other materials.
-
Asaclean® NH Grade does not work by chemical reaction, so there is no soak time or hold-up time required for an effective purge.
-
Asaclean® NH Grade works best with maximum agitation - use the maximum safe screw speed and, for thermoplastic injection molding, also use maximum safe back pressure with the screw in the most forward position.
Properties
| Physical Form | Solid |

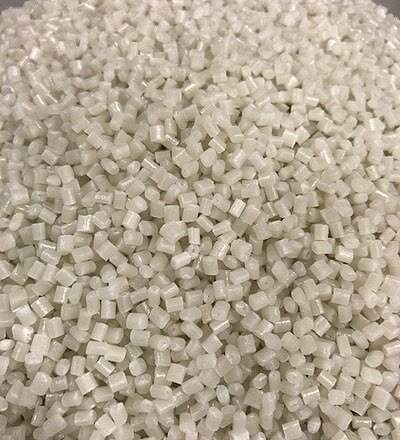

| Shape | Pellets |
| Color | Milkey white - light yellow |
| Water Solubility | Insoluble |
| Other Solvent Solubility | Soluble in methyl ethyl ketone, cyclohexanone, etc. (except for inorganic content) |
| Stability | Stable under normal temperatures |
| Reactivity | Non-reactive under normal handling and storage conditions |
| Conditions to Avoid | Do not exceed recommended temperature range. Do not allow Asaclean® NC grade to reside in barrel for ANY period of time at ANY temperature. |
Measurements
| Specific Gravity | 1.24 at 23°C (73°F) |
| Softening Point | 130°C (266°F) |
| Flashpoint: | 380°C (716°F) |
| Autoignition Temp: | 490°C (914°F) |
Packaging Options
 |
|
Please Note: The above data should be used for reference only.
*If processing between 330°C to 360°C (625°F to 680°F), local ventilation is required.
*If processing between 330°C to 360°C (625°F to 680°F), local ventilation is required.
